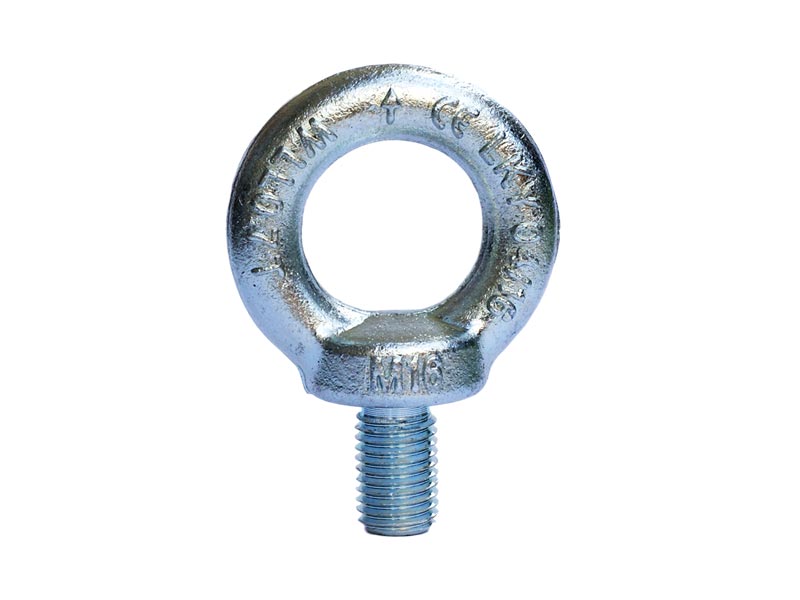

IS Range (DIN580) Eyebolts
We do not recommend these for lifting purposes.
- General Purpose – Not For Lifting
- Zinc Passivated surface finish

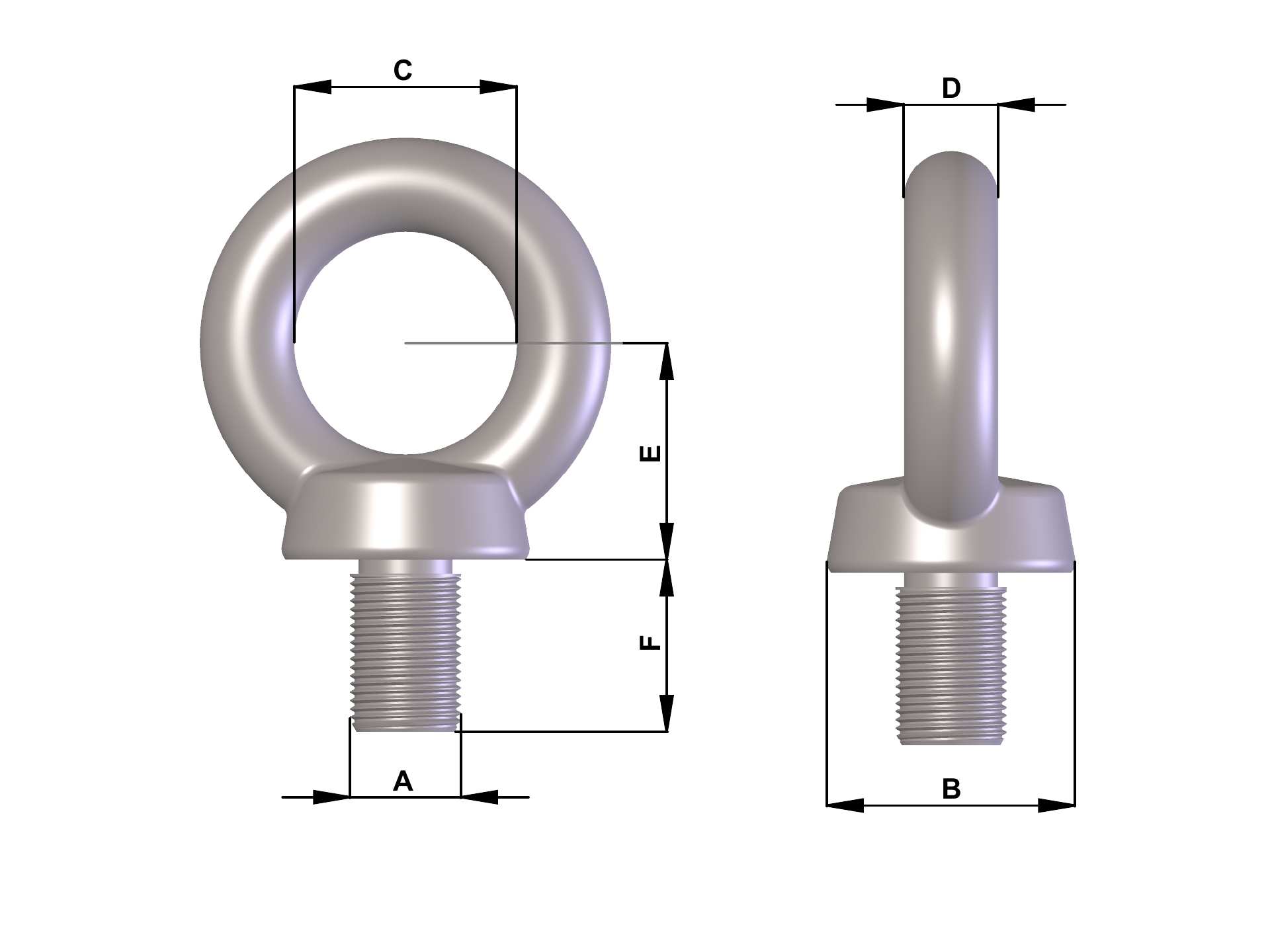

| Type | Size | Thread Pitch | B | C | D | E | F | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|---|
| Metric | M08 | 1.25 | 20 | 20 | 8 | 16 | 13 | 0.06 | GPEBM08 | IGES, STEP |
| Metric | M10 | 1.5 | 25 | 25 | 10 | 20.5 | 17 | 0.1 | GPEBM10 | IGES, STEP |
| Metric | M12 | 1.75 | 30 | 30 | 12 | 25 | 20.5 | 0.18 | GPEBM12 | IGES, STEP |
| Metric | M16 | 2 | 35 | 35 | 14 | 29.5 | 27 | 0.29 | GPEBM16 | IGES, STEP |
| Metric | M20 | 2.5 | 40 | 40 | 16 | 34 | 30 | 0.46 | GPEBM20 | IGES, STEP |
| Metric | M22 | 2.5 | 50 | 50 | 20 | 43 | 36 | 0.58 | GPEBM22 | IGES, STEP |
| Metric | M24 | 3 | 50 | 50 | 20 | 43 | 36 | 0.89 | GPEBM24 | |
| Imperial | 3/8" | 16 | 25 | 25 | 10 | 20.5 | 17 | 0.1 | GPEB375W | |
| Imperial | 7/8" | 9 | 35 | 35 | 14 | 29.5 | 27 | 0.29 | GPEB875W |
