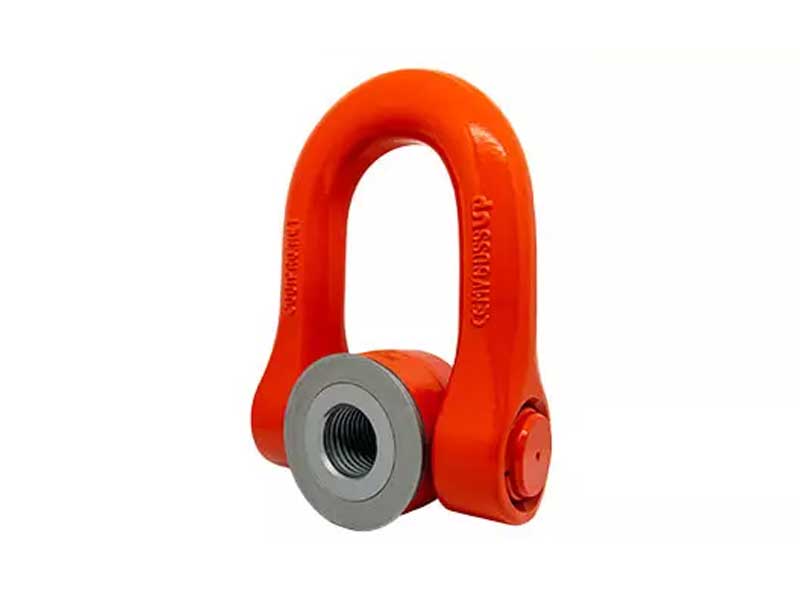

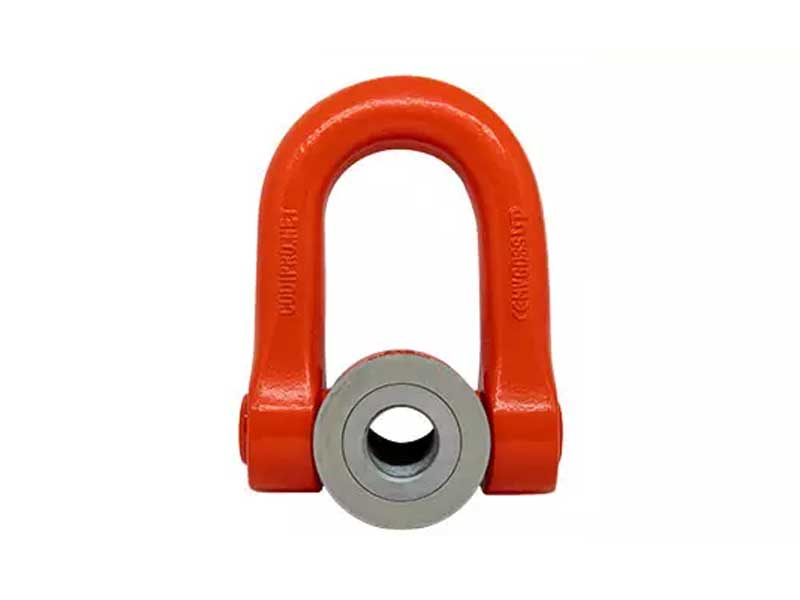

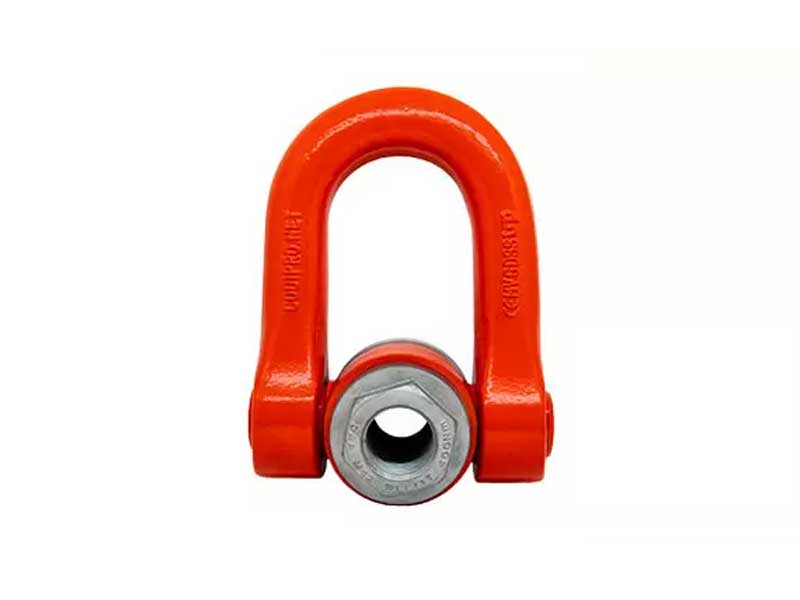

Codipro Universal Double Female Swivel Lifting Ring (FE.DSS)
The FE.DSS female lifting ring is a double swivel ring. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straigt lift, with angle, tilting, rotating).
The universal lifting ring FE.DSS is approved for all lifting configurations from 0° to 90°, designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL and tightening torque. It is manufactured in compliance with the REACH regulation and is also available as male and stainless-steel.
- Standard metric and UNC threads available
M 24 to M 52 – WLL from 4.50 t to 21.00 t
UNC 1’’ to UNC 2″ – WLL from 10,000 lbs to 50,000 lbs - Safety factor 4:1 and 5:1
- Swivelng under load
- 360° rotation – 180° swivel
- Complies with the Machinery Directive 2006/42/CE
- Manufactured in compliance with the EN 1677-1 norm
| Product Code | Diameter | SF 5:1 WLL (t) | SF 4:1 WLL (t) | L Maxi (mm) | Torque (Nm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FE.DSS-M24-UP | M 24 (x3) | 4.5 | 5.5 | 66 | 160 | 50 | 66 | 31 | 70 | 98 | 73 | 149 | 5.1 | 11.24 |
| FE.DSS-M27-UP | M 27 (x3) | 5.2 | 6.5 | 66 | 200 | 50 | 66 | 31 | 70 | 98 | 73 | 149 | 5.1 | 11.24 |
| FE.DSS-M30-UP | M 30 (x3.5) | 7.5 | 8.5 | 66 | 250 | 50 | 66 | 31 | 70 | 98 | 73 | 149 | 5.1 | 11.24 |
| FE.DSS-M33-UP | M 33 (x3.5) | 8 | 10.5 | 66 | 250 | 50 | 66 | 31 | 70 | 98 | 73 | 149 | 5.1 | 11.24 |
| FE.DSS-M36-UP | M 36 (x4) | 10 | 12 | 66 | 320 | 50 | 66 | 31 | 70 | 98 | 73 | 149 | 5.1 | 11.24 |
| FE.DSS-M39-UP | M 39 (x4) | 12 | 14 | 89 | 320 | 60 | 89 | 38 | 95 | 123 | 91 | 182 | 10 | 22.05 |
| FE.DSS-M42-UP | M 42 (x4.5) | 13 | 15 | 89 | 400 | 60 | 89 | 38 | 95 | 123 | 91 | 182 | 10 | 22.05 |
| FE.DSS-M45-UP | M 45 (x4.5) | 14.5 | 16 | 89 | 400 | 60 | 89 | 38 | 95 | 123 | 91 | 182 | 10 | 22.05 |
| FE.DSS-M48-UP | M 48 (x5) | 17 | 20 | 89 | 600 | 60 | 89 | 38 | 95 | 123 | 91 | 182 | 10 | 22.05 |
| FE.DSS-M52-UP | M 52 (x5) | 19 | 21 | 89 | 600 | 60 | 89 | 38 | 95 | 123 | 91 | 182 | 10 | 22.05 |
