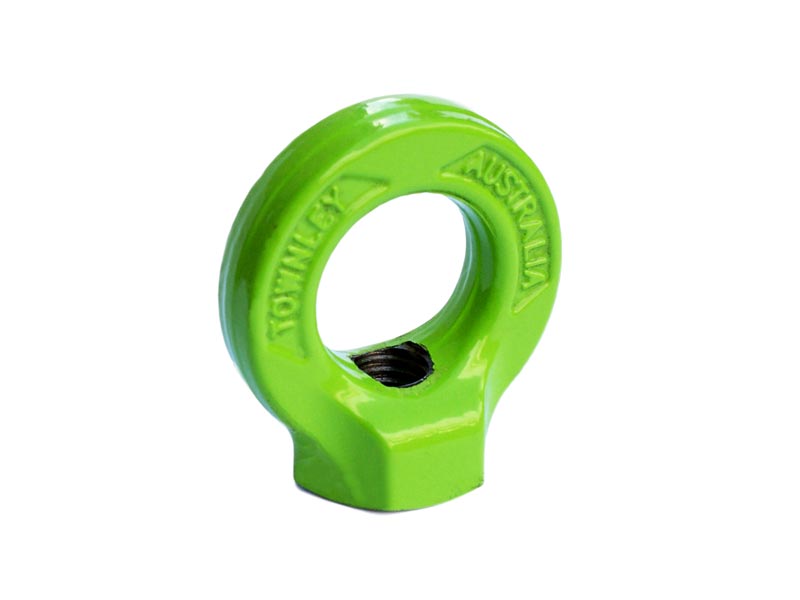

Grade-8 Metric Eye Nuts
Townley’s new range of Grade-8 Eye Nuts offer up to 4 times higher lifting capacity in certain applications.
Geometry is designed around the DIN582 which presents a larger internal eye diameter across the range.
- Forged From High Tensile Alloy Steel
- Tempered
- Hi-Visibility Powder Coated Finish
- Manufactured from steel certified to Australian Standards
- 100% electromagnetic crack testing to AS 1171
- Special thread forms made to order

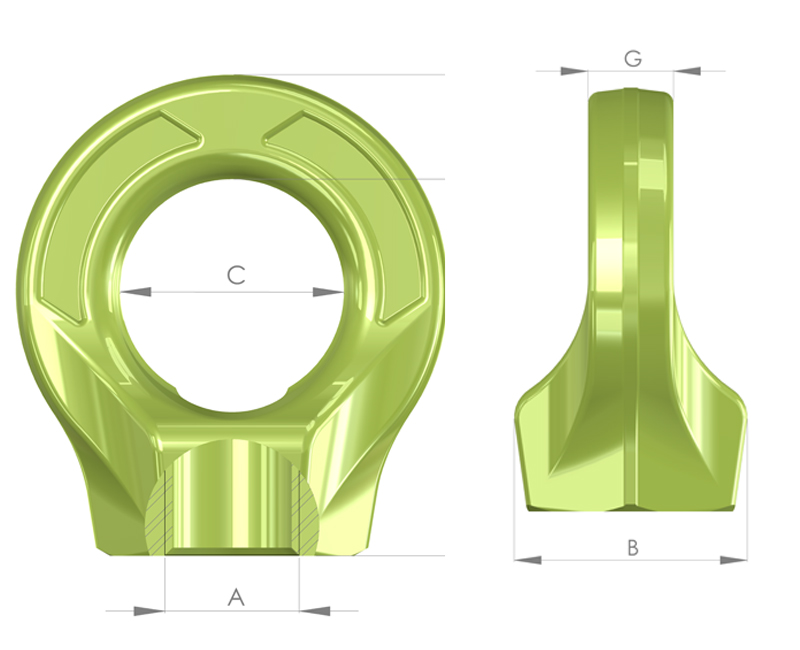

| Type | WLL F1 (t) | WLL F2 (t) | B | C | D | E | G | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|---|
| M08 | 0.8 | 0.2 | 27 | 30 | 12 | 48 | 10 | 0.19 | HTEN08 | IGES, STEP |
| M10 | 1 | 0.25 | 27 | 30 | 12 | 48 | 10 | 0.19 | HTEN10 | IGES, STEP |
| M12 | 1.6 | 0.4 | 27 | 30 | 12 | 48 | 10 | 0.19 | HTEN12 | IGES, STEP |
| M16 | 4 | 1 | 34 | 34 | 15 | 56 | 14 | 0.33 | HTEN16 | IGES, STEP |
| M20 | 6 | 1.5 | 41 | 40 | 17 | 70 | 16 | 0.68 | HTEN20 | IGES, STEP |
| M22 | 8 | 2 | 50 | 49 | 20 | 83 | 20 | 1.1 | HTEN22 | |
| M24 | 8 | 2 | 50 | 49 | 20 | 83 | 20 | 1.1 | HTEN24 | IGES, STEP |
| M27 | 8 | 2.5 | 50 | 49 | 20 | 83 | 20 | 1.1 | HTEN27 | IGES, STEP |
| M30 | 12 | 3.0 | 71 | 60 | 28 | 101 | 26 | 2.3 | HTEN30 | IGES, STEP |
| M33 | 16 | 4 | 71 | 60 | 28 | 101 | 26 | 2.3 | HTEN33 | |
| M36 | 20 | 5 | 71 | 60 | 28 | 101 | 26 | 2.3 | HTEN36 |
