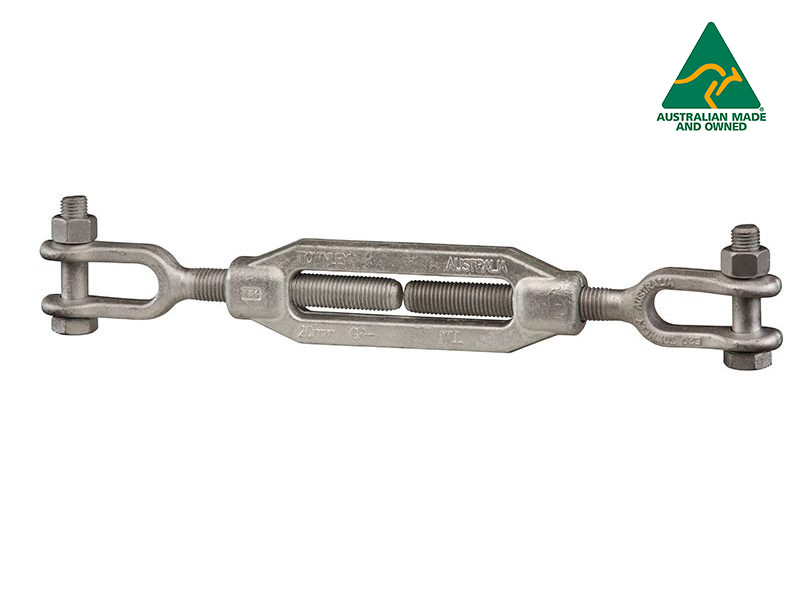

Clevis & Clevis Turnbuckles
- AS2319 – 2001
- 6:1 Safety Factor
- Grades L, P & S
- Tested and Certified
- Galvanized
- Manufactured from steel certified to Australian Standards
Available on Request:
- Lock Nuts
| Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | B | C | D | F | K | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade L | 0.3 | M10 | 240 | 350 | 30 | 14 | 30 | 150 | 10 | 0.5 | TBCCL10 | Register |
| Grade L | 0.5 | M12 | 335 | 470 | 36 | 15 | 35 | 190.5 | 10 | 0.84 | TBCCL12 | Register |
| Grade L | 0.75 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 12 | 1.6 | TBCCL16 | Register |
| Grade L | 1.25 | M20 | 440 | 520 | 46 | 22 | 46 | 216.5 | 16 | 2.8 | TBCCL20 | Register |
| Grade L | 2.5 | M24 | 450 | 585 | 59 | 30 | 58 | 232 | 20 | 4.57 | TBCCL24 | Register |
| Grade L | 5 | M33 | 630 | 780 | 78 | 38 | 76 | 252 | 27 | 8 | TBCCL33 | Register |
| Grade P | 0.6 | M10 | 240 | 350 | 30 | 14 | 30 | 150 | 10 | 0.5 | TBCC10P | Register |
| Grade P | 1 | M12 | 335 | 470 | 36 | 15 | 35 | 190.5 | 10 | 0.84 | TBCC12P | Register |
| Grade P | 1.6 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 12 | 1.6 | TBCC16P | Register |
| Grade P | 2.5 | M20 | 440 | 520 | 46 | 22 | 46 | 216.5 | 16 | 2.8 | TBCC20P | Register |
| Grade P | 4 | M24 | 450 | 585 | 59 | 30 | 58 | 232 | 20 | 4.57 | TBCC24P | Register |
| Grade P | 8 | M33 | 630 | 780 | 78 | 38 | 76 | 252 | 27 | 8 | TBCC33P | Register |
| Grade S | 0.8 | M10 | 240 | 350 | 30 | 14 | 30 | 150 | 10 | 0.5 | TBCC10S | Register |
| Grade S | 1.2 | M12 | 335 | 470 | 36 | 15 | 35 | 190.5 | 10 | 0.84 | TBCC12S | Register |
| Grade S | 2 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 12 | 1.6 | TBCC16S | Register |
| Grade S | 3.2 | M20 | 440 | 520 | 46 | 22 | 46 | 216.5 | 16 | 2.8 | TBCC20S | Register |
| Grade S | 5 | M24 | 450 | 585 | 59 | 30 | 58 | 232 | 20 | 4.57 | TBCC24S | Register |
| Grade S | 10 | M33 | 630 | 780 | 78 | 38 | 76 | 252 | 27 | 8 | TBCC33S | Register |
