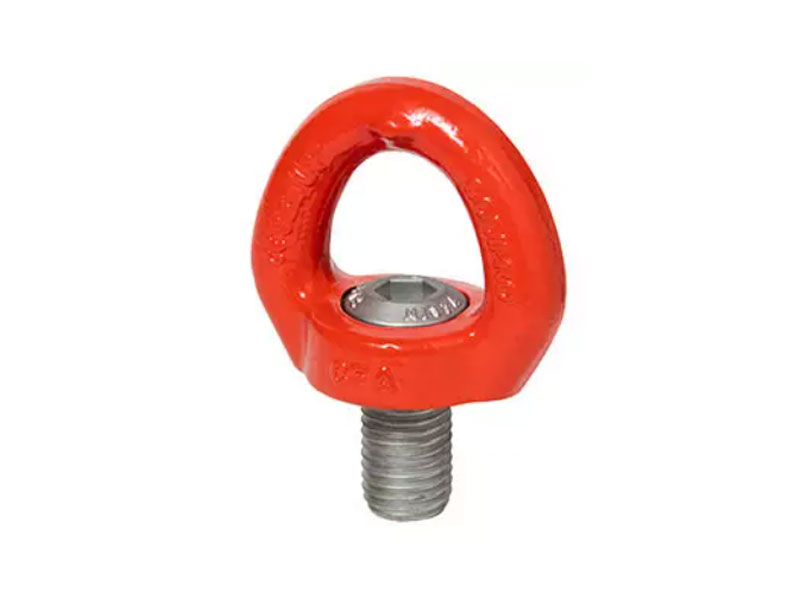

Codipro Swivel Eye Bolt (SEB)
The SEB lifting ring is a single swivel ring built for versatile lifting tasks. Its self-orientation system ensures alignment with the sling, while the GRADUP lifting ring allows smooth load rotation and adaptability to any configuration, including straight lifts, angled, tilting, and rotating.
Designed to operate between -20°C and +200°C, it features CE, WLL, and tightening torque markings. Compliant with REACH regulation, the SEB is available in female and stainless-steel versions, making it a reliable choice for demanding lifting needs.
- European Quality
- Self-orientation system ensures perfect alignment with the sling.
- Safety factor 4:1 and 5:1
- Swivelling under load
- 360° rotation
- Complies with the Machinery Directive 2006/42/CE
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
| Product Code | Diameter | SF 5:1 WLL (t) | SF 4:1 WLL (t) | Standard L1 | Torque (Nm) | S1 (mm) | S2 (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Weight kg | Weight lbs | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEB M 30 UP | M 30 (x3,5) | 5,50 | 6,30 | 45 | 250 | 50 | 14 | 58 | 70 | 115 | 106 | 2,7 | 14 | Register |
| SEB M 36 UP | M 36 (x4) | 9,00 | 11,00 | 54 | 320 | 70 | 14 | 83 | 94 | 168 | 155 | 7,0 | 15.43 | Register |
| SEB M 42 UP | M 42 (x4,5) | 12,00 | 15,00 | 63 | 400 | 70 | 14 | 83 | 94 | 168 | 155 | 7,0 | 15.43 | Register |
| SEB M 48 UP | M 48 (x5) | 5,00 | 16,00 | 70 | 600 | 70 | 19 | 80 | 94 | 168 | 155 | 7,0 | 15.43 | Register |
