DSR Quick Lift Ring
The QLR (Quick Lift Ring) or QL.DSR is a double swivel ring that allows particularly fast anchoring. At the push of a button, it can be fixed in the threaded hole in a matter of seconds. Its double swivel ensures a perfect alignment with the sling. The QL.DSR saves up to 80% of time compared to screwing in a conventional lifting ring. The system works purely mechanically and thus requires no complex maintenance.
The QL.DSR is also available in a stainless steel model, which offers corrosion resistance and can be used in humid, chemical and marine environments.
- Metric thread: from M 8 to M 24 as standard; for loads ranging from 0.25 t to 2.50 t
- Safety factor 5

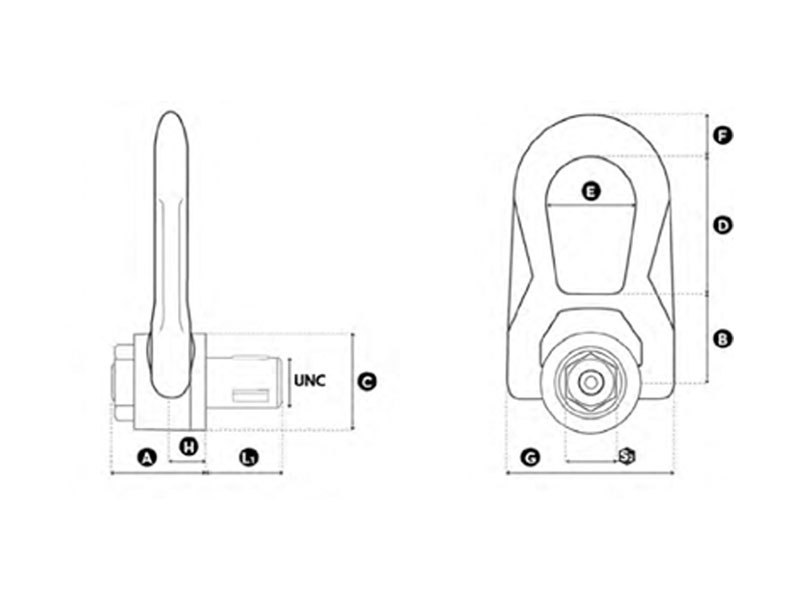

| Reference | Diameter | SF 5:1 WLL (t) | Standard L1 | Torque (Nm) | S2 (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QL-DSR-M08 | M8 (x1.25) | 0.25 | 17.5 | 20 | 18 | 31 | 30 | 30 | 38 | 27 | 14 | 53 | 9.5 | 0.3 | Register |
| QL-DSR-M10 | M10 (x1.50) | 0.40 | 19.5 | 30 | 18 | 31 | 30 | 30 | 38 | 27 | 14 | 53 | 9.5 | 0.3 | Register |
| QL-DSR-M12 | M12 (x1.75) | 0.5 | 23 | 60 | 27 | 40 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0.9 | Register |
| QL-DSR-M14 | M14 (x2.00) | 0.70 | 23 | 80 | 27 | 40 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0.9 | Register |
| QL-DSR-M16 | M16 (x2.00) | 1.05 | 27 | 100 | 27 | 40 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0.9 | Register |
| QL-DSR-M20 | M20 (x2.50) | 1.70 | 30 | 160 | 40 | 55 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2.6 | Register |
| QL-DSR-M24 | M24 (x3.00) | 2.50 | 36 | 180 | 40 | 55 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2.6 | Register |
