Eye & Eye Rigging Screws
- AS2319-2001
- 6:1 Safety Factor
- Grades L, P & S
- Tested and Certified
- Galvanized
- Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Available on Request:
- Lock Nuts

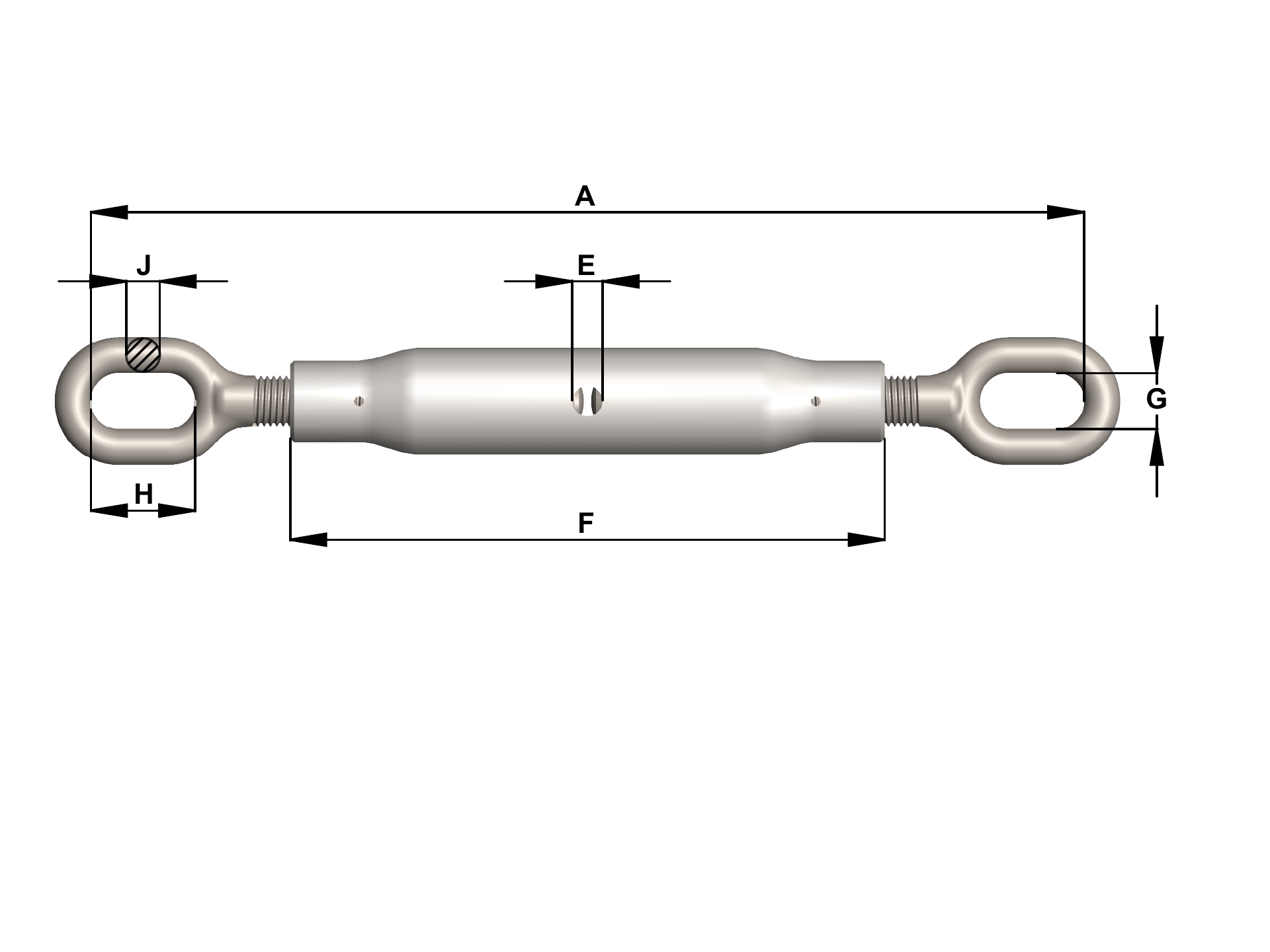

| Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | E | F | G | H | J | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Grade L | 0.3 | M10 | 260 | 380 | 8.5 | 180 | 12 | 21 | 7 | 0.34 | RSEEL10 | Register |
| Grade L | 0.5 | M12 | 340 | 520 | 8.5 | 230 | 15 | 30 | 9 | 0.79 | RSEEL12 | Register |
| Grade L | 0.75 | M16 | 350 | 525 | 9 | 230 | 17 | 36 | 12 | 1.09 | RSEEL16 | Register |
| Grade L | 1.25 | M20 | 380 | 545 | 10.5 | 230 | 21 | 42 | 12 | 1.72 | RSEEL20 | Register |
| Grade L | 2.5 | M24 | 540 | 725 | 13 | 360 | 25 | 51 | 17 | 3.2 | RSEEL24 | Register |
| Grade L | 5 | M33 | 660 | 936 | 14 | 380 | 33 | 70 | 24 | 9.11 | RSEEL33 | Register |
| Grade L | 6 | M39 | 664 | 952 | 14 | 410 | 40 | 80 | 28 | 16 | RSEEL39 | |
| Grade L | 5 | 1.25 | 590 | 837 | 14 | 380 | 35 | 65 | 22 | 7 | RSEE1250 | Register |
| Grade L | 6 | 1.5 | 648 | 927 | 16 | 405 | 38 | 75 | 25 | 11 | RSEE1500 | Register |
| Grade L | 7.5 | 1.75 | 686 | 946 | 17 | 405 | 41 | 88 | 32 | 15 | RSEE1750 | Register |
| Grade L | 10 | 2 | 717 | 965 | 19 | 405 | 44 | 102 | 38 | 25 | RSEE2000 | Register |
| Grade L | 15 | 2.25 | 813 | 1016 | 22 | 405 | 60 | 130 | 41 | 30 | RSEE2250 | Register |
| Grade L | 20 | 2.5 | 813 | 1016 | 22 | 405 | 60 | 130 | 47 | 39 | RSEE2500 | Register |
| Grade P | 0.6 | M10 | 260 | 380 | 8.5 | 180 | 12 | 21 | 7 | 0.34 | RSEE10P | Register |
| Grade P | 1 | M12 | 340 | 520 | 8.5 | 230 | 15 | 30 | 9 | 0.79 | RSEE12P | Register |
| Grade P | 1.6 | M16 | 350 | 525 | 9 | 230 | 17 | 36 | 12 | 1.09 | RSEE16P | Register |
| Grade P | 2.5 | M20 | 380 | 545 | 10.5 | 230 | 21 | 42 | 12 | 1.72 | RSEE20P | Register |
| Grade P | 4 | M24 | 540 | 725 | 13 | 360 | 25 | 51 | 17 | 3.2 | RSEE24P | Register |
| Grade P | 8 | M33 | 660 | 936 | 14 | 380 | 33 | 70 | 24 | 9.11 | RSEE33P | Register |
| Grade P | 10 | M39 | 664 | 952 | 14 | 410 | 40 | 80 | 28 | 16 | RSEE39P | |
| Grade P | 16 | M48 | 750 | 1000 | 18 | 420 | 44 | 91 | 38 | 25 | RSEE48P | Register |
| Grade S | 0.8 | M10 | 260 | 380 | 8.5 | 180 | 12 | 21 | 7 | 0.34 | RSEE10S | Register |
| Grade S | 1.2 | M12 | 340 | 520 | 8.5 | 230 | 15 | 30 | 9 | 0.79 | RSEE12S | Register |
| Grade S | 2 | M16 | 350 | 525 | 9 | 230 | 17 | 36 | 12 | 1.09 | RSEE16S | Register |
| Grade S | 3.2 | M20 | 380 | 545 | 10.5 | 230 | 21 | 42 | 12 | 1.72 | RSEE20S | Register |
| Grade S | 2.5 | M24 | 540 | 725 | 13 | 360 | 25 | 51 | 17 | 3.2 | RSEE24S | Register |
| Grade S | 10 | M33 | 660 | 936 | 14 | 380 | 33 | 70 | 24 | 9.11 | RSEE33S | Register |
| Grade S | 12 | M39 | 664 | 952 | 14 | 410 | 40 | 80 | 28 | 16 | RSEE39S | |
| Grade S | 20 | M48 | 750 | 1000 | 18 | 420 | 44 | 91 | 38 | 25 | RSEE48S | Register |
