Grade-8 Metric Eyebolts

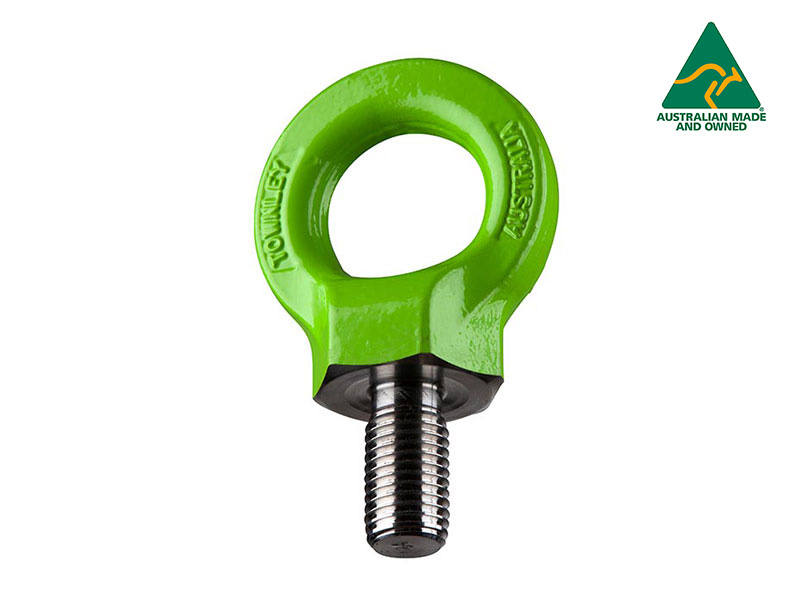

Grade-8 Eye Bolts offer up to 4 times higher lifting capacity in certain applications. The larger internal eye diameter offers a versatile alternative to standard Grade 4 eyebolts.
- Forged From High Tensile Alloy Steel
- Tempered
- Hi-Visibility Powder Coated Finish
- Manufactured from steel certified to Australian Standards
- electromagnetic crack testing to AS 1171
- Long shanks and special thread forms made to order

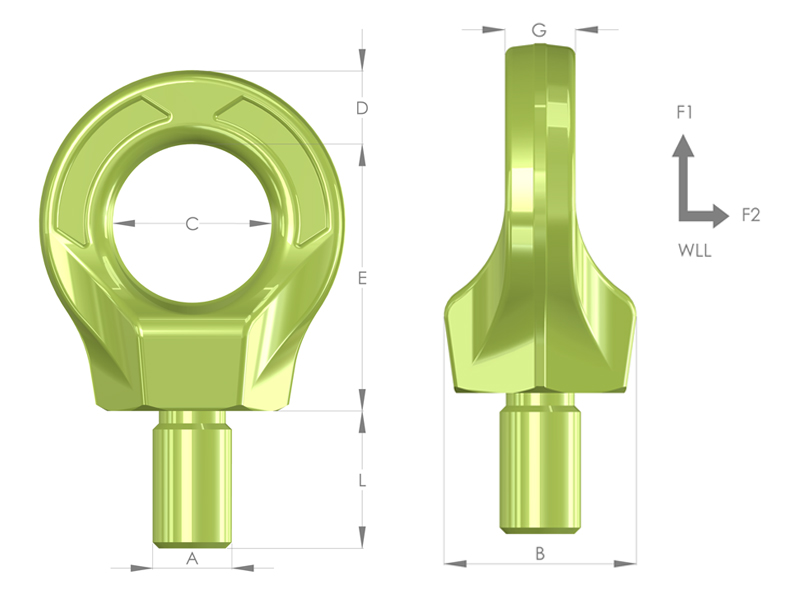

| Type | WLL F1 (t) | WLL F2 (t) | B | C | D | E | G | L | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M08 | 0.8 | 0.2 | 27 | 30 | 12 | 48 | 10 | 21 | 0.17 | HTEB08 | IGES, STEP |
| M10 | 1 | 0.25 | 27 | 30 | 12 | 48 | 10 | 21 | 0.17 | HTEB10 | IGES, STEP |
| M12 | 1.6 | 0.4 | 27 | 30 | 12 | 48 | 10 | 21 | 0.17 | HTEB12 | IGES, STEP |
| M16 | 4 | 1 | 34 | 34 | 15 | 56 | 14 | 28 | 0.37 | HTEB16 | IGES, STEP |
| M20 | 6 | 1.6 | 41 | 40 | 17 | 70 | 16 | 35 | 0.6 | HTEB20 | IGES, STEP |
| M22 | 7 | 2 | 50 | 50 | 20 | 70 | 16 | 42 | 1.1 | HTEB22 | |
| M24 | 8 | 2.5 | 50 | 50 | 20 | 85 | 18 | 42 | 1.1 | HTEB24 | IGES, STEP |
| M27 | 8 | 2.5 | 50 | 50 | 20 | 85 | 18 | 42 | 1.1 | HTEB27 | IGES, STEP |
| M30 | 12 | 3 | 60 | 60 | 26 | 105 | 26 | 52 | 2.5 | HTEB30 | IGES, STEP |
| M36 | 16 | 4 | 72 | 72 | 34 | 120 | 32 | 63 | 4 | HTEB33 | IGES, STEP |
