Height Safety Anchor Point

Category:

Height Safety Anchor Point

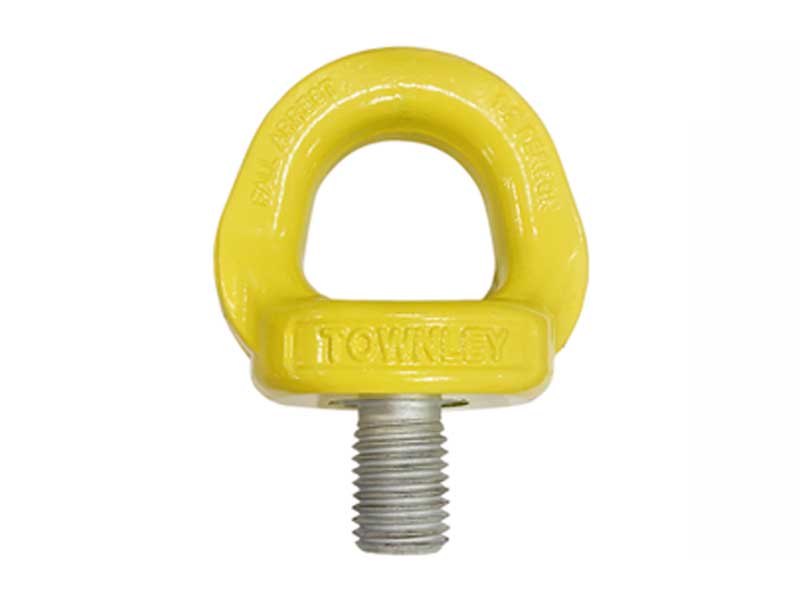

Townley’s Height Safety Anchor Point is a robust fall protection anchor point, precision-engineered for both safety and performance. Constructed from high-tensile alloy steel, it delivers exceptional durability and reliability. With a rated capacity of 1–2 persons (21kN), it is designed to provide secure attachment points for various height safety systems.

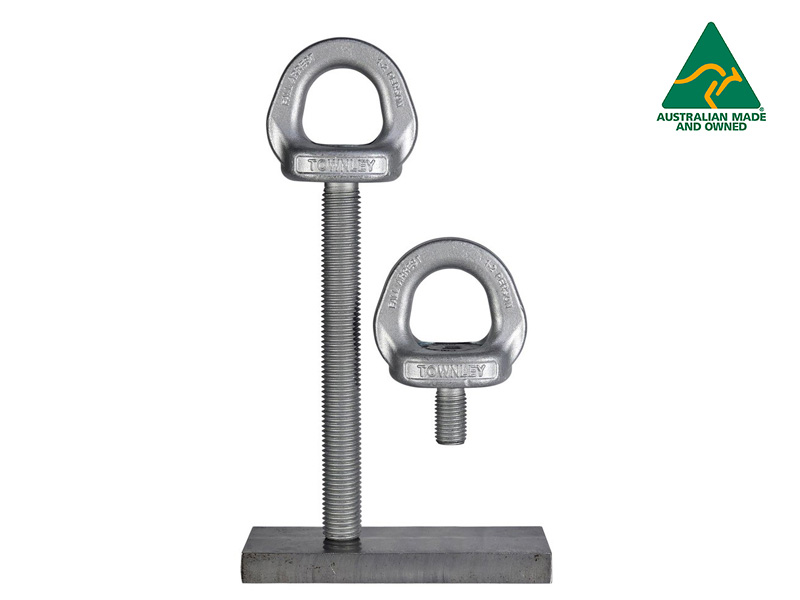

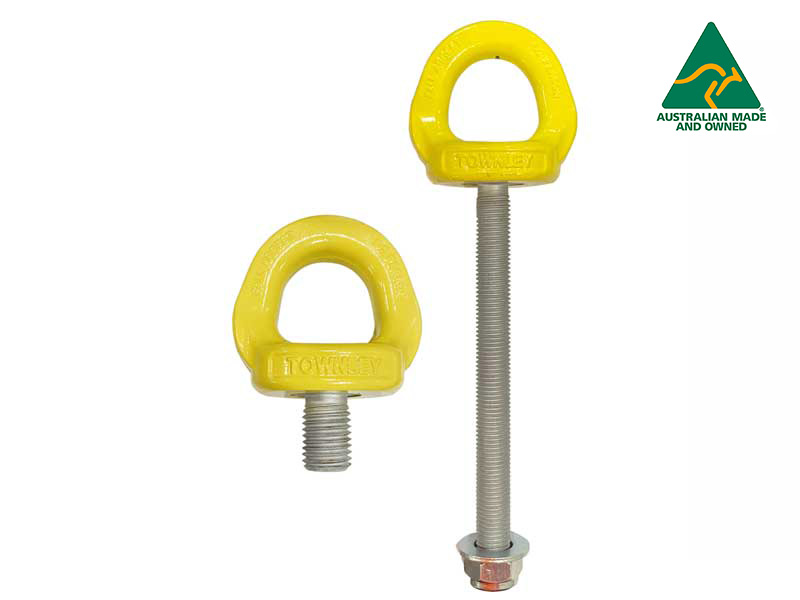

This anchor point is available in both long and short series bolt options. Manufactured at Townley, our height safety anchor point complies with the AS/NZS 5532:2013 standard. It is designed to meet exacting safety requirements, making it the ideal choice for professionals working at heights.

Compliance Plates are also available for purchase, please specify if you require one at time of order placement.

Height Safety Anchor Point

Category:

Load Ring:
• Rated Capacity: 1 – 2 Persons
• Alloy steel construction
• Long and short series bolt options
• Non-removable bolt
• 100% Crack Detection
• Made in Australia
• AS/NZS 5532:2013

Product CodeAB (mm)C (mm)D (mm)E (mm)G (mm)K (mm)L (mm)N (mm)Weight (kg)
FP-TSEB16M1650391655167530100.4
FP-TSEBLS16M16503916551675180100.6
FP-TSEB20M2050391655167530120.6
FP-TSEBLS20M20503916551675180120.8
