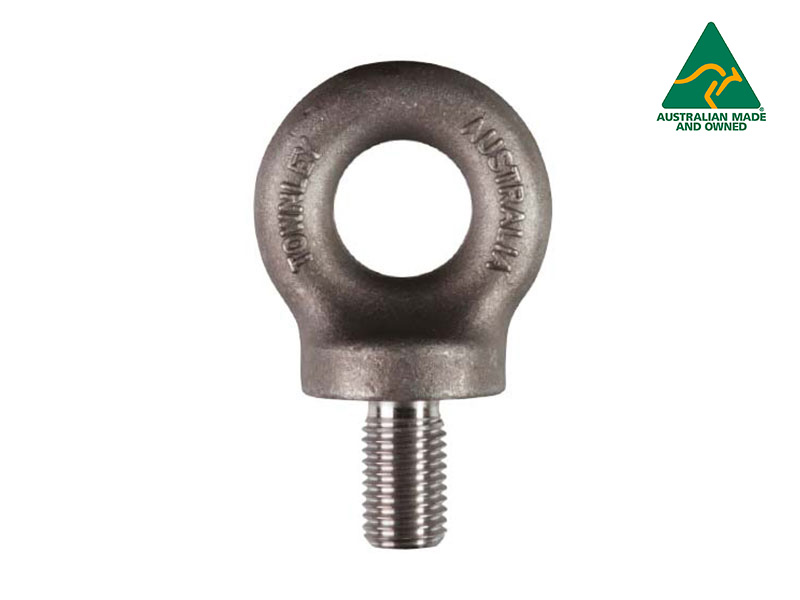

Grade-4 Metric Eyebolts
AS2317:2018 Now Published. Download 2018 Information Guide Here
- 6:1 Safety Factor
- Manufactured using only heat certified Australian Steel
Available on Request:
- Special Thread forms
- Hot Dip Galvanizing, Zinc Passivating, Zinc Plating, Chrome Plating, Powder Coating
- Testing and Certification
| Type | WLL (t) Transverse F2 | WLL (t) Axial F1 | Size | Thread Pitch | B | C | D | E | F | Weight (kg) | CAD | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric Coarse | N/A | N/A | M06 | 1 | 21 | 14 | 9 | 19 | 17 | 0.06 | IGES, STEP | Register |
| Metric Coarse | N/A | N/A | M08 | 1.25 | 21 | 14 | 9 | 19 | 17 | 0.06 | IGES, STEP | Register |
| Metric Coarse | 0.06 | 0.25 | M10 | 1.5 | 21 | 14 | 9 | 19 | 17 | 0.06 | IGES, STEP | Register |
| Metric Coarse | 0.10 | 0.40 | M12 | 1.75 | 28 | 18 | 11 | 24 | 22 | 0.15 | IGES, STEP | Register |
| Metric Coarse | 0.10 | 0.40 | M14 | 2 | 35 | 24 | 15 | 31 | 27 | 0.28 | IGES, STEP | Register |
| Metric Coarse | 0.20 | 0.80 | M16 | 2 | 35 | 24 | 15 | 31 | 27 | 0.28 | IGES, STEP | Register |
| Metric Coarse | 0.20 | 0.80 | M18 | 2.5 | 42 | 29 | 16 | 35 | 40 | 0.46 | IGES, STEP | Register |
| Metric Coarse | 0.40 | 1.6 | M20 | 2.5 | 42 | 29 | 16 | 35 | 40 | 0.46 | IGES, STEP | Register |
| Metric Coarse | 0.50 | 2 | M22 | 2.5 | 50 | 33 | 20 | 41 | 41 | 0.85 | IGES, STEP | Register |
| Metric Coarse | 0.62 | 2.5 | M24 | 3 | 57 | 38 | 22 | 48 | 42 | 1.1 | IGES, STEP | Register |
| Metric Coarse | 0.62 | 2.5 | M27 | 3 | 71 | 48 | 28 | 65 | 52 | 2.1 | IGES, STEP | Register |
| Metric Coarse | 1.0 | 4 | M30 | 3.5 | 71 | 48 | 28 | 65 | 52 | 2.1 | IGES, STEP | Register |
| Metric Coarse | 1.25 | 5 | M33 | 3.5 | 71 | 48 | 28 | 65 | 52 | 2.2 | IGES, STEP | Register |
| Metric Coarse | 1.57 | 6.3 | M36 | 4 | 86 | 54 | 33 | 73 | 63 | 3.7 | IGES, STEP | Register |
| Metric Coarse | 1.75 | 7 | M39 | 4 | 86 | 54 | 33 | 73 | 64 | 3.7 | IGES, STEP | Register |
| Metric Coarse | 2.0 | 8 | M42 | 4.5 | 102 | 68 | 40 | 90 | 79 | 6.3 | IGES, STEP | Register |
| Metric Coarse | 2.5 | 10 | M48 | 5 | 115 | 76 | 49 | 99 | 89 | 9.5 | IGES, STEP | Register |
| Metric Coarse | 3.7 | 15 | M56 | 5.5 | 143 | 97 | 56 | 124 | 116 | 19.5 | IGES, STEP | Register |
| Metric Coarse | 5.0 | 20 | M64 | 6 | 143 | 97 | 56 | 124 | 116 | 19.5 | IGES, STEP | Register |
| Metric Coarse | 6.2 | 25 | M72 | 6 | 163 | 106 | 66 | 140 | 125 | 29 | IGES, STEP | Register |
| Metric Coarse | 7.5 | 30 | M76 | 6 | 163 | 106 | 66 | 140 | 125 | 29 | IGES, STEP | Register |
| Metric Fine | 0.06 | 0.25 | M10 | 1.25 | 21 | 14 | 9 | 19 | 18 | 0.06 | IGES, STEP | Register |
| Metric Fine | 0.10 | 0.40 | M12 | 1.5 | 28 | 19 | 11 | 24 | 23 | 0.15 | IGES, STEP | Register |
| Metric Fine | 0.20 | 0.80 | M16 | 1.5 | 35 | 24 | 15 | 31 | 30 | 0.28 | IGES, STEP | Register |
| Metric Fine | 0.40 | 1.6 | M20 | 1.5 | 42 | 29 | 16 | 35 | 40 | 0.46 | IGES, STEP | Register |
| Metric Fine | 0.50 | 2 | M22 | 1.5 | 50 | 33 | 20 | 41 | 41 | 0.85 | IGES, STEP | Register |
| Metric Fine | 0.62 | 2.5 | M24 | 2 | 57 | 38 | 22 | 48 | 46 | 1.1 | IGES, STEP | Register |
| Metric Fine | 1.0 | 4 | M30 | 2 | 71 | 48 | 28 | 65 | 50 | 2.1 | IGES, STEP | Register |
| Metric Fine | 1.25 | 5 | M33 | 2 | 71 | 48 | 28 | 65 | 50 | 2.2 | IGES, STEP | Register |
| Metric Fine | 1.57 | 6.3 | M36 | 2 | 86 | 55 | 33 | 73 | 66 | 3.7 | IGES, STEP | Register |
| Metric Fine | 1.75 | 7 | M39 | 2 | 86 | 55 | 33 | 73 | 66 | 3.7 | IGES, STEP | Register |
| Metric Fine | 2.0 | 8 | M42 | 2 | 102 | 66 | 40 | 90 | 77 | 6.3 | IGES, STEP | Register |
| Metric Fine | 2.5 | 10 | M48 | 3 | 115 | 72 | 49 | 99 | 89 | 9.5 | IGES, STEP | Register |
| Metric Fine | 3.7 | 15 | M56 | 4 | 143 | 95 | 56 | 124 | 111 | 19.5 | IGES, STEP | Register |
| Metric Fine | 5.0 | 20 | M64 | 4 | 143 | 95 | 56 | 124 | 111 | 19.5 | IGES, STEP | Register |
| Metric Fine | 7.5 | 30 | M76 | 4 | 163 | 106 | 66 | 140 | 125 | 29 | IGES, STEP | Register |
