Rigging Carabiner
Introducing the world’s first carabiner designed specifically for lifting. Whether you’re lifting, moving, tethering, setup has never been easier and quicker! Featuring an offset dual-action catch and rated up to 800kg, it’s the perfect addition to your rigging setup.
The carabiner is available in two sizes (CLA-801, CLA-802).
- Working Load Limit (WLL): 800kg
- Certified to AS4991-2004 (Lifting Devices)
- Individually proof-loaded to 1600kg in accordance with AS4991-2004
- Minimum Breaking Load (MBL) 4000kg (5:1)
- Unique Serial Number marked on each Carabiner
- Fully marked in accordance with AS4991-2004
- Test certificates supplied with all carabiners
- Cold-formed steel construction
- Black gloss finish (minimum 50-hour salt spray corrosion resistance)
- Dual-action locking gate
- Removable captive bar supplied with every carabiner for securing carabiner to sling
- Note: To be used in major axis only

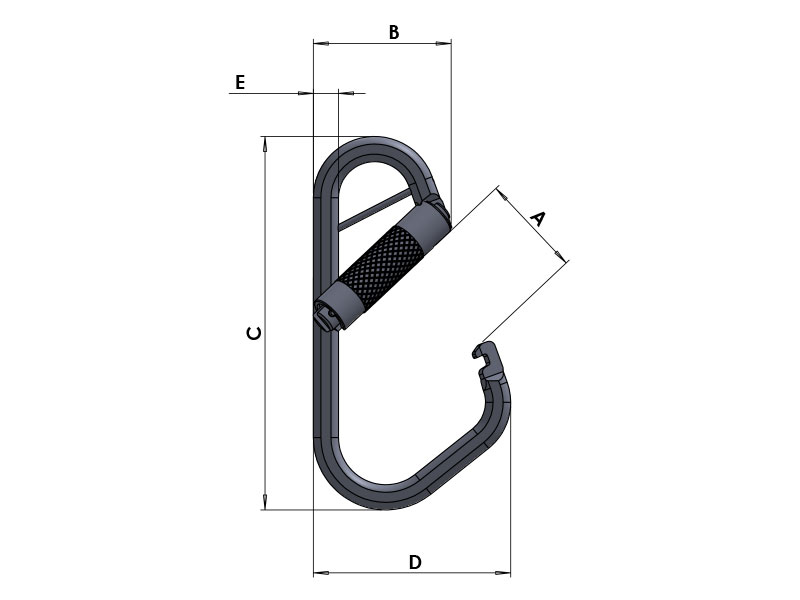

| Model | WLL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|---|
| CLA-801 | 800kg | 16.5mm | 57mm | 113mm | 62mm | 12.5mm |
| CLA-802 | 800kg | 47mm | 65mm | 178mm | 94mm | 12mm |
