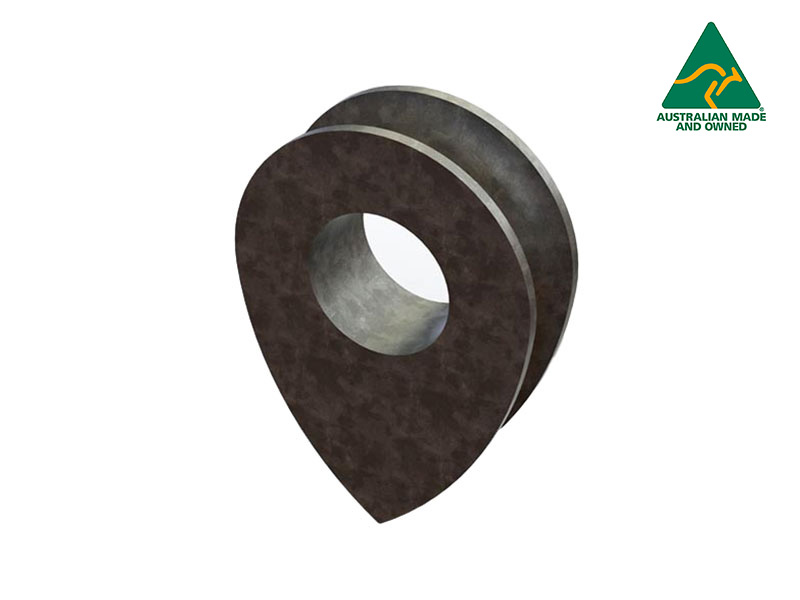

Solid Heart Thimbles
Solid heart thimbles are commonly used to terminate crane wire ropes and are ideal to interface directly with a rigging screw, turnbuckle or other rigging accessory.
- Manufactured in Australia in accordance with AS1138
- Cast Steel
- Available for rope sizes 6mm-75mm
- Holes/Bores are drilled to order
Surface finish options include:
- Black self colour
- Galvanized
- Painted
| Working Load Limit (t) | Rope Diameter | A | B | C | D | E | Weight (kg) | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|
| N/A | 6-7 | 48 | 37 | 13 | 27 | 8 | 0.2 | FDT-SHT07 | |
| N/A | 8 | 57 | 46 | 15 | 34 | 10 | 0.4 | FDT-SHT08 | |
| N/A | 10 | 70 | 53 | 20 | 38 | 13 | 0.5 | FDT-SHT10 | |
| N/A | 11-13 | 83 | 60 | 25 | 46 | 13 | 0.6 | FDT-SHT13 | |
| N/A | 14 - 16 | 94 | 70 | 28 | 52 | 18 | 0.7 | FDT-SHT14-16 | |
| N/A | 18 - 20 | 113 | 75 | 32 | 57 | 21 | 1 | FDT-SHT18-20 | |
| N/A | 22 | 127 | 95 | 33 | 68 | 24 | 1.5 | FDT-SHT22 | |
| N/A | 24 | 142 | 107 | 38 | 77 | 26 | 1.8 | FDT-SHT24 | |
| N/A | 26 | 156 | 117 | 41 | 82 | 28 | 2.5 | FDT-SHT26 | |
| N/A | 28 | 166 | 123 | 42 | 89 | 31 | 3 | FDT-SHT28 | |
| N/A | 32-36 | 204 | 151 | 53 | 114 | 39 | 6.7 | FDT-SHT36 | |
| N/A | 38 - 42 | 240 | 173 | 57 | 128 | 45 | 9.5 | FDT-SHT42 | |
| N/A | 44 | 252 | 186 | 64 | 136 | 47 | 11.4 | FDT-SHT44 | |
| N/A | 48 | 267 | 202 | 65 | 148 | 50 | 12 | FDT-SHT48 | |
| N/A | 52 - 54 | 293 | 222 | 73 | 162 | 54 | 20 | FDT-SHT52-54 | |
| N/A | 58 | 330 | 245 | 82 | 174 | 61 | 28 | FDT-SHT58 | |
| N/A | 64 | 374 | 274 | 90 | 198 | 65 | 44 | FDT-SHT64 | |
| N/A | 70 - 75 | 405 | 310 | 105 | 223 | 77 | 52 | FDT-SHT70-75 |
