Closed Wedge Sockets
- Manufactured in Australia
- Cast Alloy Steel
- Available for rope sizes 6mm to 20mm
- 100% Magnetic particle inspected in accordance with AS1171
- Ultrasonically tested in accordance with AS2574
- Manufactured to meet the performance requirements of AS1666 Wire Rope Slings
Surface finish options include:
- Black self colour
- Galvanized
- Painted

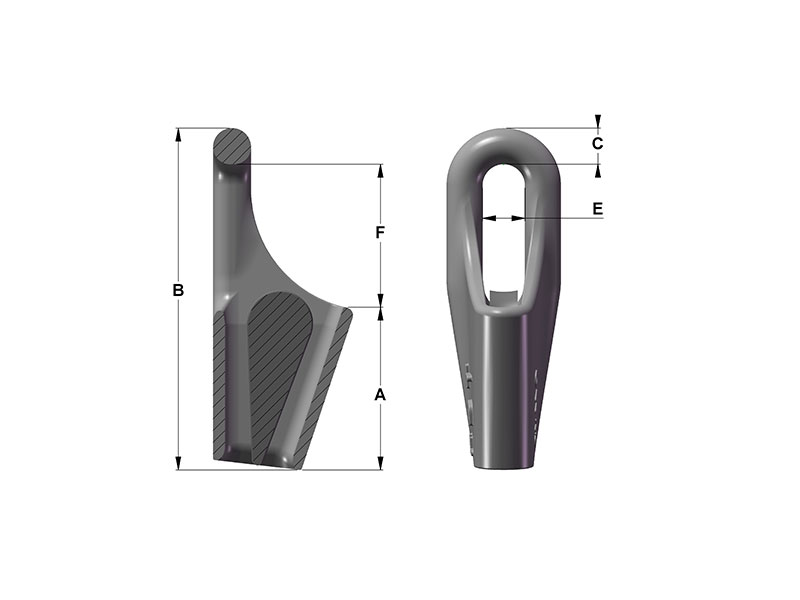

Rope Diameter | A | B | C | E | F | Weight (kg) | Product Code |
---|---|---|---|---|---|---|---|
6 | 41 | 90 | 13 | 12 | 40 | 0.3 | FDT-CW06 |
10 | 61 | 127 | 15 | 17 | 51 | 0.6 | FDT-CW10 |
13 | 75 | 165 | 19 | 21 | 71 | 1.2 | FDT-CW13 |
16 | 86 | 220 | 21 | 44 | 111 | 2 | FDT-CW16 |
20 | 100 | 245 | 25 | 36 | 116 | 4.2 | FDT-CW20 |
