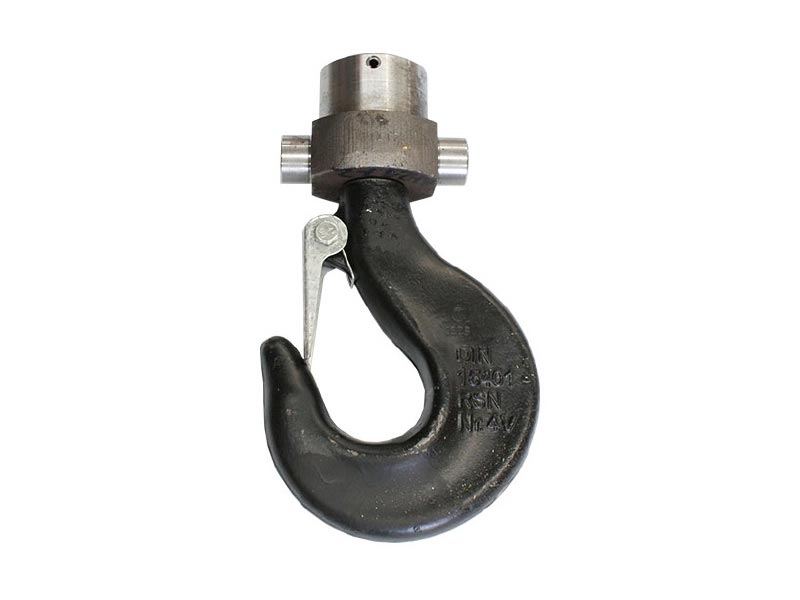

Crane Hooks – Unmachined
We supply Irizar Forge forged Crane Hooks unmachined, all crane hooks meet Australian and international DIN standards.
Download the Irizar Forge Drive Group Table.
Call 1300 869 653 for pricing on hook specifications not listed online or to discuss your requirements.
| DIN 15401 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| N.º | a1 | a2 | a3 | b1 | b2 | d1 | e3 | h1 | h2 | L |
| 2.5 | 63 | 50 | 72 | 53 | 45 | 42 | 132 | 67 | 58 | 310 |
| 4 | 71 | 56 | 80 | 63 | 53 | 48 | 148 | 80 | 67 | 385 |
| 5 | 80 | 63 | 90 | 71 | 60 | 53 | 165 | 90 | 75 | 410 |
| 6 | 90 | 71 | 101 | 80 | 67 | 60 | 185 | 100 | 85 | 430 |
| 8 | 100 | 80 | 113 | 90 | 75 | 67 | 210 | 112 | 95 | 520 |
| 10 | 112 | 90 | 127 | 100 | 85 | 75 | 221 | 125 | 106 | 540 |
| 12 | 125 | 100 | 143 | 112 | 95 | 85 | 252 | 140 | 118 | 675 |
| 16 | 140 | 112 | 160 | 125 | 106 | 95 | 280 | 160 | 132 | 745 |
| 20 | 160 | 125 | 180 | 140 | 118 | 106 | 330 | 180 | 150 | 865 |
| 25 | 180 | 140 | 202 | 160 | 132 | 118 | 360 | 200 | 170 | 935 |
| 32 | 200 | 160 | 225 | 180 | 150 | 132 | 400 | 224 | 190 | 1100-1200 |
| 40 | 224 | 180 | 252 | 200 | 170 | 150 | 447 | 250 | 212 | 1105-1205 |
| 50 | 250 | 200 | 285 | 224 | 190 | 170 | 485 | 280 | 236 | 1190-1290 |
| 63 | 280 | 224 | 320 | 250 | 212 | 190 | 550 | 315 | 265 | 1320-1420 |
| 80 | 315 | 250 | 358 | 280 | 236 | 212 | 598 | 355 | 300 | 1470-1570 |
| 100 | 355 | 280 | 402 | 315 | 265 | 236 | 688 | 400 | 335 | 1615-1715 |
| 125 | 400 | 315 | 450 | 355 | 300 | 265 | 750 | 450 | 375 | 1890-1990 |
| 160 | 450 | 355 | 505 | 400 | 335 | 300 | 825 | 500 | 425 | - |
| 200 | 500 | 400 | 565 | 450 | 375 | 335 | 900 | 560 | 475 | - |
| 250 | 560 | 450 | 635 | 500 | 425 | 375 | 980 | 630 | 530 | - |
