International Alloy Eye Hook
• Forged – Hardened and Tempered
• Equipped with Safety Catch

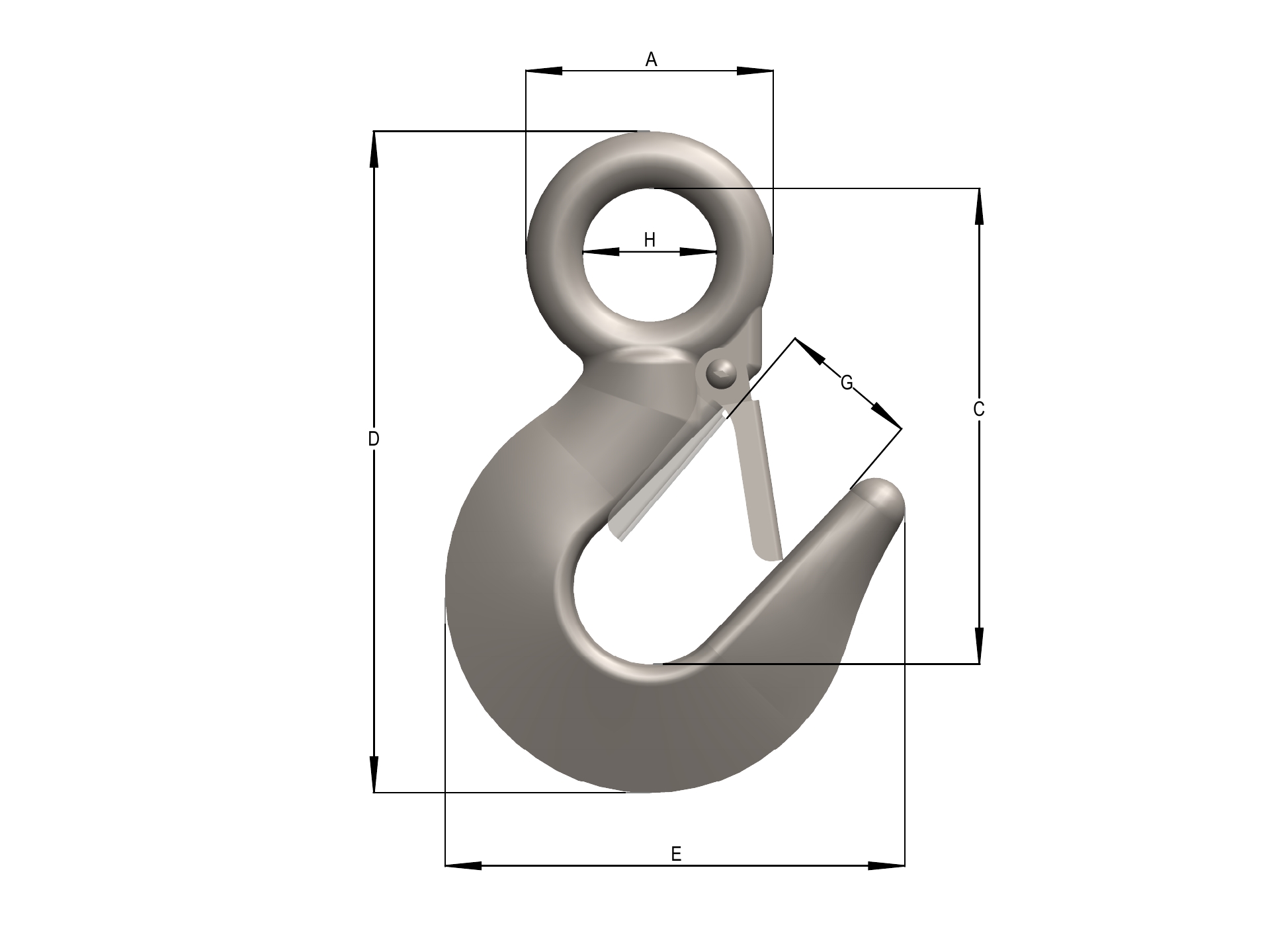

| Type | Working Load Limit (t) | A | B | C | D | E | G | Weight (kg) | Safety Catch Part# | Product Code | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | 1 | 37 | 19 | 81 | 101 | 70 | 19 | 0.27 | IEHSC1 | IEH1 | |
| N/A | 1.5 | 44 | 22 | 90 | 113 | 77 | 21 | 0.38 | IEHSC15 | IEH15 | |
| N/A | 2 | 53 | 26 | 100 | 127 | 90 | 23 | 0.58 | IEHSC2 | IEH2 | |
| N/A | 3 | 62 | 32 | 120 | 150 | 110 | 28 | 0.82 | IEHSC3 | IEH3 | |
| N/A | 4.5 | 74 | 40 | 147 | 183 | 125 | 35 | 1.93 | IEHSC45 | IEH45 | |
