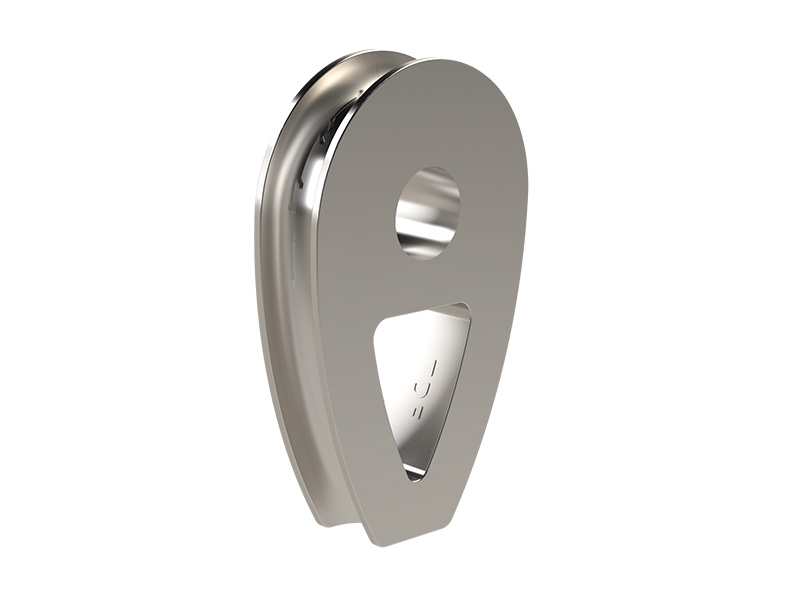

Solid Heart Thimbles

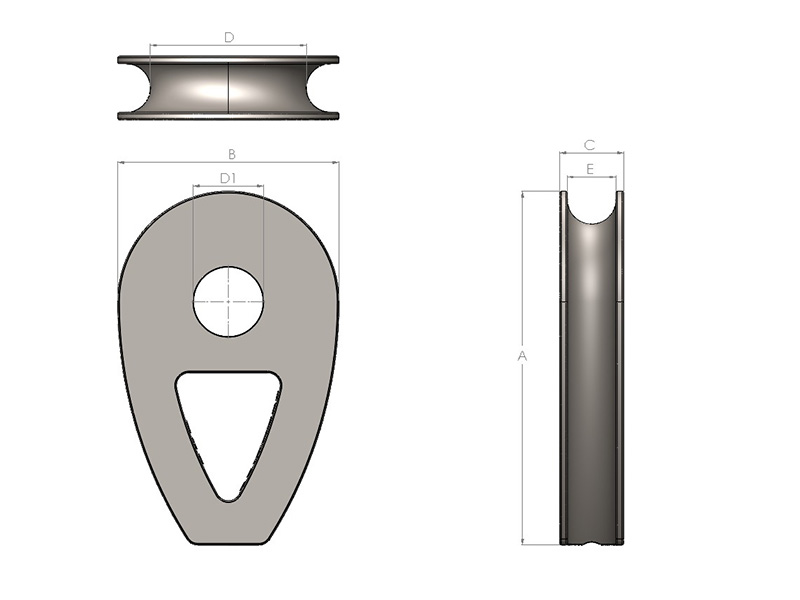

Working Load Limit (t)	Rope Diameter	A	B	C	D	D1	E	Weight (kg)	Product Code
N/A	8	66	40	15	30	17-20	9	0.2	EN-SHT08
N/A	10	82	50	17.5	37	21-25	11	0.3	EN-SHT10
N/A	12	98	60	20	44	24-30	13	0.5	EN-SHT12
N/A	14	114	70	23.5	51	29-35	16	0.8	EN-SHT14
N/A	16	130	80	26	58	32-40	18	0.9	EN-SHT16
N/A	18	145	90	28.5	65	35-45	20	1.2	EN-SHT18
N/A	20	161	100	31	72	40-50	22	1.6	EN-SHT20
N/A	22	177	110	33.5	79	43-55	24	2.1	EN-SHT22
N/A	24	193	120	36	86	46-60	26	2.7	EN-SHT24
N/A	26	209	130	39.5	93	49-65	29	3.6	EN-SHT26
N/A	28	224	140	42	99	52-70	31	4.2	EN-SHT28
N/A	32	256	160	47	113	58-80	35	6.3	EN-SHT32
N/A	36	288	180	53	127	65-90	40	8.8	EN-SHT36
N/A	40	320	200	58	141	71-100	44	11	EN-SHT40
N/A	44	352	220	63	155	76-110	48	15	EN-SHT44
N/A	48	384	240	69	169	82-120	53	20	EN-SHT48
N/A	52	416	260	74	183	87-130	57	25	EN-SHT52
N/A	56	448	280	80	196	92-140	62	32	EN-SHT56
N/A	64	512	320	90	224	103-160	70	46	EN-SHT64
N/A	72	576	360	101	251	112-180	79	66	EN-SHT72
N/A	80	640	400	112	279	120-200	88	90	EN-SHT80

Solid Heart Thimbles – BS EN 13411-9
