TMC 70 Magnetic Clamp

Category:

TMC 70 Magnetic Clamp

Our ‘little one’  is the perfect magnetic base for your projects. The TMC 70 has been designed to become a valuable helper in countless applications.

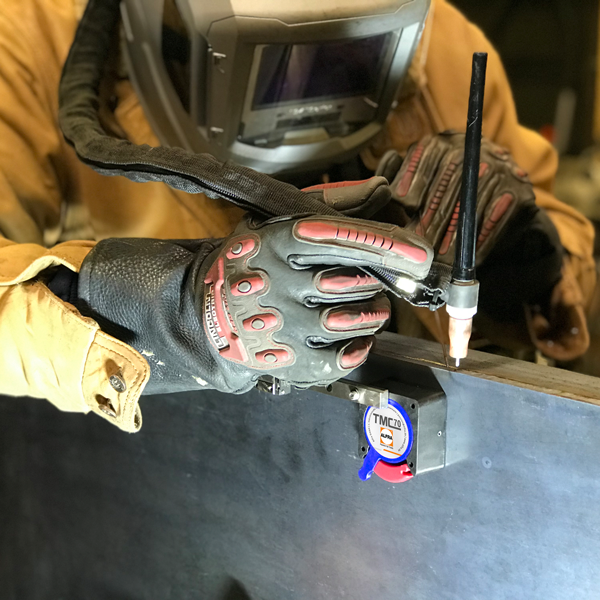

It shows its full potential when fixing ferromagnetic sheets and plates for flawless welding seams, as an aid for welding at an angle, or for fixing intricate metal parts that would alternatively have to be fixed with clamps.

Connecting threads at the top and on three sides of the magnet are ensuring that the TMC 70, which is weighing only 29 grams, can be customised with your own assembly parts.

The flat design is another advantage. With a height of only 25 mm, it is ideally suited for easy integration and attachment of accessories.

Like all Alfra magnets, it is equipped with patented technology providing an extraordinary holding power on thin materials. It has a load capacity of 60 kg at only 3 mm thick steel.

TMC 70 Magnetic Clamp

Category:

Key Features:

  • Holding Force : 70 kg
  • Min. Material Thickness : 1 mm
  • Dead Weight : 0.29 kg

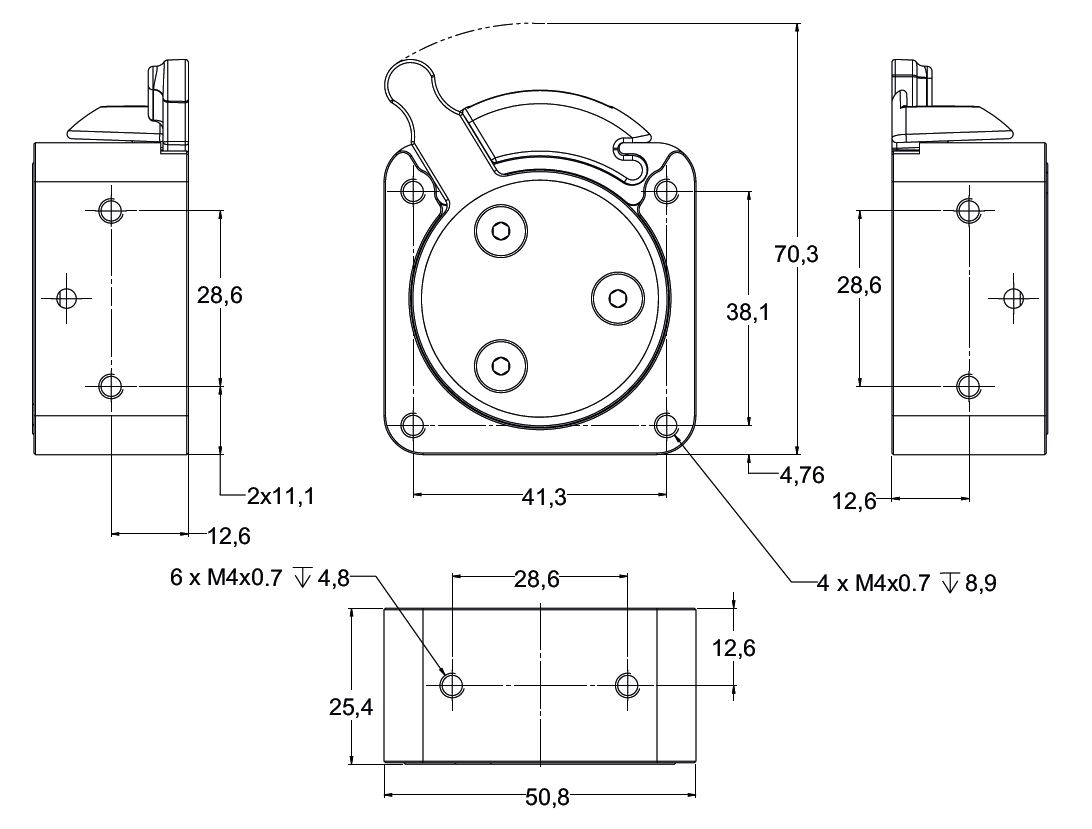

  • Dimensions (LxW) : 71 x 51 mm
  • M5 and M6 connection threads for attachment of accessories
  • TiN-Coated wear resistant magnetic contact area for increased durability
