Codipro Female Double Swivel Lifting Ring (FE.DSR) Metric

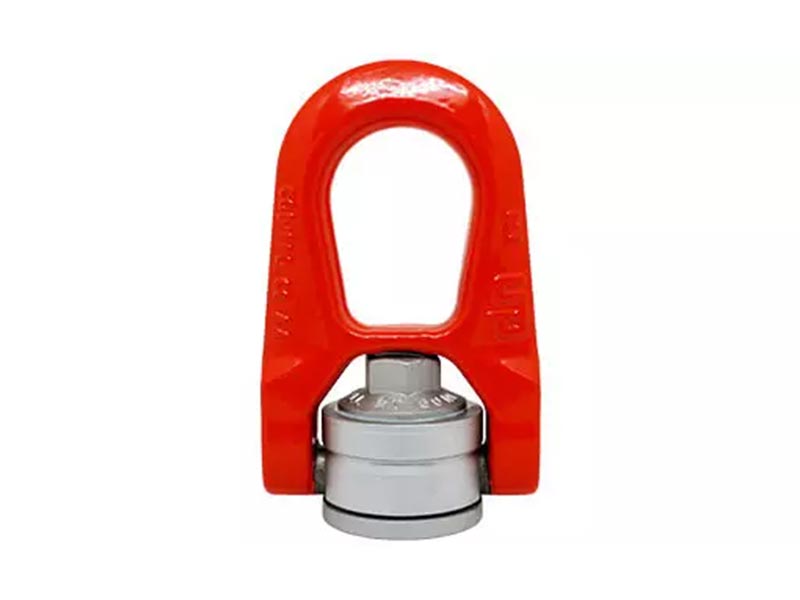

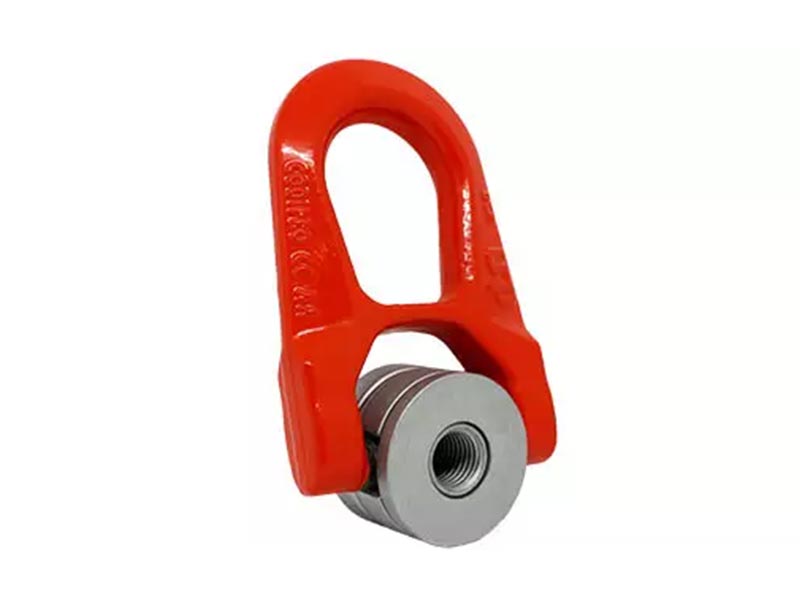

The FE.DSR female lifting ring is a double swivel ring. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straigt lift, with angle, tilting, rotating).
The FE.DSR lifting ring is equipped with a protective crossbar and is approved for all lifting configurations from 0° to 90° The DSR is designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL and tightening torque. It is manufactured in compliance with the REACH regulation and is also available as male and stainless-steel.
- Standard metric available: M 8 to M 22 – WLL from 0.04 t to 4.50 t
- Safety factor 4:1 and 5:1
- Swivelling under load
- 360° rotation – 180° swivel
- Complies with the Machinery Directive 2006/42/CE
- Manufactured in compliance with the EN 1677-1 norm
- Individual traceability number
| Reference | Diameter | SF 5:1 WLL (t) | SF 4:1 WLL (t) | Standard L1 | Torque (Nm) | S1 (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FE.DSR M 8 UP | M 8 (x1,25) | 0,40 | 0,50 | 45 | 6 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | Register |
| FE.DSR M 10 UP | M 10 (x1,5) | 0,70 | 0,90 | 45 | 10 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | Register |
| FE.DSR M 12 UP | M 12 (x1,75) | 1,05 | 1,30 | 45 | 15 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | Register |
| FE.DSR M 14 UP | M 14 (x2) | 1,40 | 1,80 | 45 | 30 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | Register |
| FE.DSR M 16 UP | M 16 (x2) | 2,00 | 2,30 | 45 | 50 | 20 | 45 | 40 | 45 | 53 | 38 | 17 | 76 | 13 | 0,9 | Register |
| FE.DSR M 18 UP | M 18 (x2,5) | 2,30 | 2,30 | 62 | 70 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,6 | Register |
| FE.DSR M 20 UP | M 20 (x2,5) | 2,50 | 2,50 | 62 | 100 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,6 | Register |
| FE.DSR M 22 UP | M 22 (x2,5) | 3,50 | 4,50 | 62 | 120 | 24 | 62 | 55 | 60 | 83 | 55 | 25 | 115 | 19 | 2,6 | Register |
