Open Wedge Sockets
- Manufactured in Australia
- Cast Alloy Steel
- Available for rope sizes 8mm – 38mm
- 100% Magnetic particle inspected in accordance with AS1171
- Ultrasonically tested in accordance with AS2574
- Manufactured to meet the performance requirements of AS1666 Wire Rope Slings
Surface finish options include:
- Black self colour
- Galvanized
- Painted

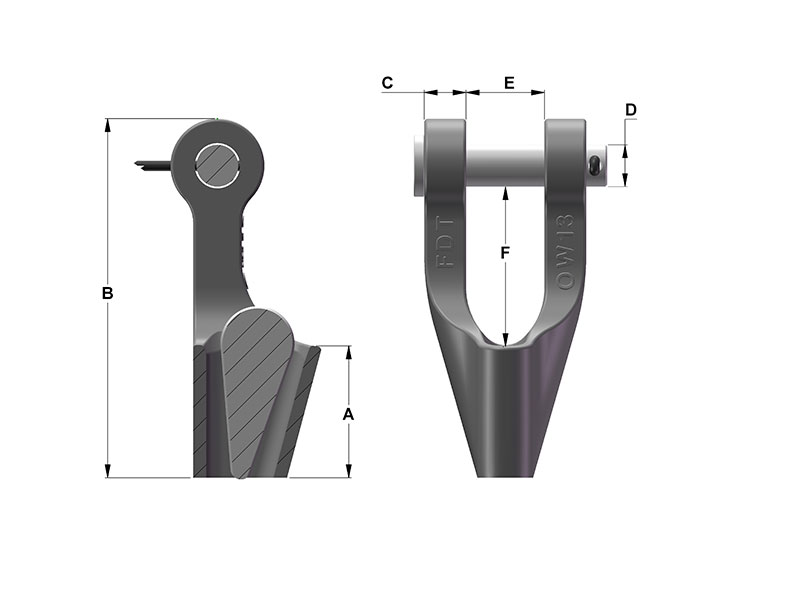

Rope Diameter | A | B | C | D | E | F | Weight (kg) | Product Code |
---|---|---|---|---|---|---|---|---|
8 - 10 | 60 | 135 | 8 | 16 | 22 | 52 | 1 | FDT-OW08-10 |
13 | 75 | 206 | 24 | 24 | 45 | 90 | 4 | FDT-OW13 |
16 | 85 | 235 | 30 | 33 | 54 | 85 | 5.5 | FDT-OW16 |
20 - 22 | 110 | 300 | 35 | 36 | 67 | 120 | 8.5 | FDT-OW20-22 |
26 - 28 | 135 | 350 | 43 | 42 | 77 | 144 | 18 | FDT-OW26-28 |
32 | 200 | 445 | 45 | 56 | 70 | 200 | 26 | FDT-OW32 |
38 | 240 | 540 | 58 | 60 | 105 | 210 | 39 | FDT-OW38 |
