S Hook with Latches
- Grade 80
- 4:1 Safety Factor
- WLL from 50kg to 5t
- Wear-resistant coating
- Used as an alternative to shackles
- Ideal for chain sling assemblies, also used for the paint or industrial assembly sectors

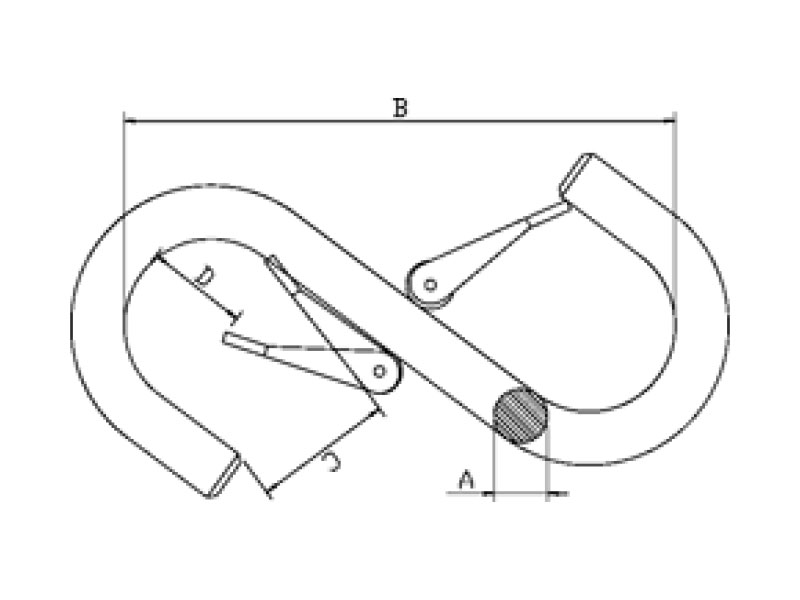

| WLL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | Mass (kg) | REF |
|---|---|---|---|---|---|---|
| 50 | 6 | 80 | 20 | 15 | 0.05 | SHOOK50 |
| 100 | 8 | 80 | 20 | 15 | 0.08 | SHOOK100 |
| 200 | 10 | 80 | 17 | 20 | 0.12 | SHOOK200 |
| 300 | 14 | 100 | 23 | 20 | 0.3 | SHOOK300 |
| 500 | 16 | 130 | 32 | 22 | 0.52 | SHOOK500 |
| 750 | 18 | 160 | 42 | 27 | 0.8 | SHOOK750 |
| 1 000 | 20 | 180 | 48 | 37 | 1.1 | SHOOK1000 |
| 1 250 | 22 | 200 | 51 | 38 | 1.25 | SHOOK1250 |
| 1 500 | 26 | 220 | 55 | 50 | 2 | SHOOK1500 |
| 2 000 | 32 | 260 | 70 | 56 | 3.65 | SHOOK2000 |
| 3 000 | 36 | 320 | 84 | 65 | 5.7 | SHOOK3000 |
| 4 000 | 40 | 360 | 103 | 76 | 8.5 | SHOOK4000 |
| 5 000 | 45 | 400 | 110 | 84 | 12 | SHOOK5000 |
