DSR Weld On Swivel Lifting Ring
CodiPro’s welding lifting rings help to provide a welded gripping anchor point for lifting and securing loads of up to 10 tons. They’re suitable for welding applications are strictly reserved for a welder who has the required qualifications based on EN 287-1.
Working load limit: 2.00 to 10.00 t.
- Available as DSR and DSS models, the welding lifting ring helps to provide a welded gripping anchor point for lifting and securing loads of up to 10 tons.
- The ring swivels 180°, but has a rotating range of 360°.
- WE.DSR and WE.DSS models have a safety factor of 5, which means that their breaking load is five times greater than the capacity indicated in the technical sheet
- Backed by its design department, CODIPRO is able to design customised lifting rings for specific needs.
- Each swivel lifting ring is delivered with a user manual and a certificate of compliance. They are ISO 14001 and ISO 9001 certified in keeping with essential safety requirements.

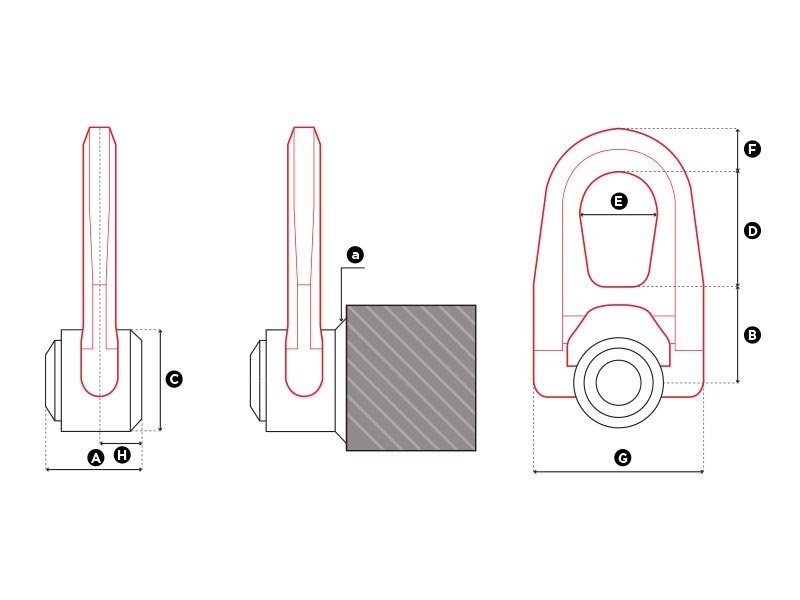

| Reference | SF 5:1 WLL (t) | SF 5:1 WLL (lbs) | a (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WE.DSR 2 | 2,00 | 4,400 | 5 | 44 | 40 | 45 | 53 | 38 | 17 | 76 | 20 | 0,9 | Register |
| WE.DSR 5 | 5,00 | 11,000 | 6 | 60 | 55 | 60 | 83 | 55 | 25 | 115 | 24 | 2,6 | Register |
| Reference | SF 5:1 WLL (t) | SF 5:1 WLL (lbs) | a (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kg) | CAD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WE.DSS 10 | 10.00 | 22.000 | 7 | 74 | 44 | 70 | 104 | 73 | 149 | 33 | 5.5 | Register |
